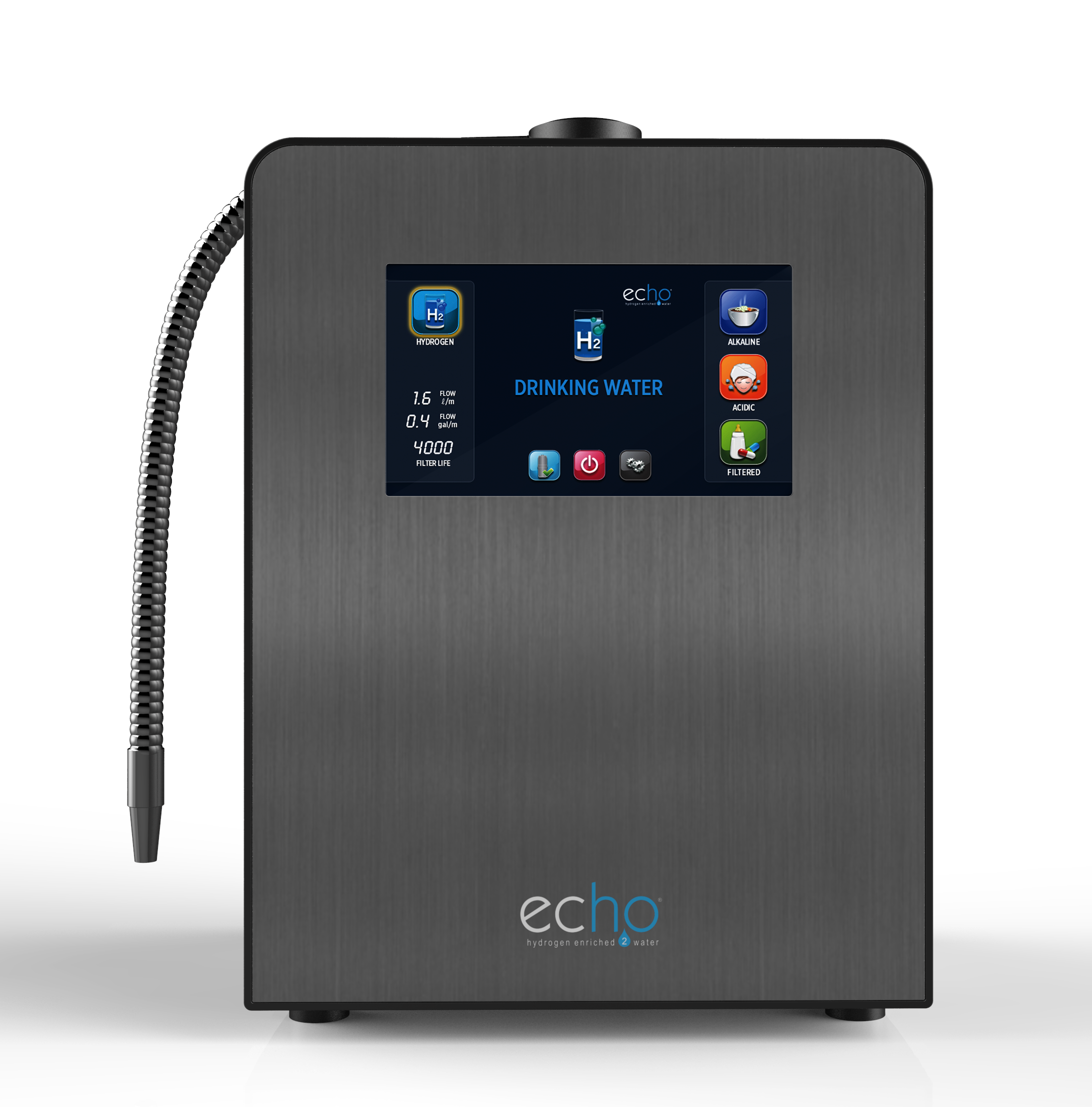

Echo Ultimate™ Hydrogen Water Machine - Professional Multi-Function Water System
The Echo Ultimate™ represents the pinnacle of advanced water technology, offering the world's only system capable of producing four distinct water types from a single unit. This versatile solution provides hydrogen-enriched, alkaline, acidic, and filtered water for various household and professional applications.
Key Specifications
⚡ Power Requirements
- Voltage: 110-240V AC (Universal)
- Power: 150W operational
- Frequency: 50/60Hz compatible
📏 Dimensions & Weight
- Size: 14.2" H × 10.8" W × 5.5" D
- Weight: 12.3 lbs (5.6 kg)
- Counter Space: 12" × 8" minimum
🔧 Installation Options
- Under-sink configuration (Echo Digital Faucet required)
- Countertop configuration
- Setup Time: 45-60 minutes professional installation
🛡️ Warranty & Support
- Unit Warranty: 10 Years Limited
- Filter Warranty: 1 Year
- Technical Support: Included
Four Water Types & Applications
💧 1. Hydrogen Water
Advanced electrolysis technology infuses filtered water with molecular hydrogen (H2) gas. Produces water with dissolved hydrogen concentration of 1.0-1.5 ppm. Designed for daily drinking water consumption.
🔵 2. Alkaline Water (4 Levels)
Electrolytically ionized water with adjustable pH levels:
- Level 1 (pH 8.0): Light alkalinity for sensitive users
- Level 2 (pH 9.0): Standard alkaline drinking water
- Level 3 (pH 10.0): Enhanced cleaning properties for vegetables
- Level 4 (pH 11.0): Strong surfactant for heavy-duty cleaning
⚠️ Important: Levels 3-4 are intended for cleaning purposes only. Consult your healthcare provider before consuming alkaline water.
🔴 3. Acidic Water (4 Levels)
Precision-controlled acidic water production:
- Level 1 (pH 6.0): Plant watering and facial rinsing
- Level 2 (pH 5.0): Hair and skin rinsing applications
- Level 3 (pH 4.0): Household surface cleaning
- Level 4 (pH 2.5): Food preparation surface sanitization
🚫 Warning: Acidic water is NOT intended for consumption. Keep away from children.
💎 4. Filtered Water
Premium 5-stage filtration system providing comprehensive contaminant removal for pure, clean-tasting water.
Advanced Filtration System
🔬 5-Stage Premium Filtration
- Stage 1: Sediment pre-filter (5 micron)
- Stage 2: Activated carbon block
- Stage 3: KDF media for heavy metal reduction
- Stage 4: Calcium sulfite for chloramine removal
- Stage 5: Post-carbon polishing filter
✅ Contaminant Removal Performance
- Heavy metals (lead, mercury, arsenic): Up to 99%
- Chlorine: >99% (1,000 gallon capacity)
- Chloramines: >99% (500 gallon capacity)
- Glyphosate: Reduced to non-detectable levels*
- Bacteria, viruses, fungus: >99.9%
*Based on third-party laboratory testing
Technical Features
⚙️ Electrolysis System
- Platinum-coated titanium electrodes
- 7-plate electrode configuration
- Automatic cleaning cycle
- SMPS power supply
💧 Flow Specifications
- Max Flow: 2.0 GPM
- Pressure: 20-100 PSI
- Temperature: 41-104°F (5-40°C)
Included Components
- Echo Ultimate™ main unit
- Installation hardware kit
- User manual and quick start guide
- Initial filter set (pre-installed)
- pH testing kit
- 10-year warranty registration card
Maintenance Requirements
🔄 Filter Replacement Schedule
- Chlorine removal: Every 1,000 gallons or 6 months
- Chloramine removal: Every 500 gallons or 3 months
- Actual replacement varies by water quality and usage
💡 Maintenance Tip
Annual professional inspection recommended. Descaling may be needed based on water hardness. The automatic electrode cleaning cycle helps maintain optimal performance.
Safety & Compliance
- ✅ ETL certified for electrical safety
- ✅ CE marked for European compliance
- ✅ RoHS compliant materials
- ✅ BPA-free construction
- ✅ Medical-grade components
- ✅ NSF/ANSI 42 certified components
- ✅ WQA tested and validated
- ✅ Designed and engineered in USA
📋 Professional Disclaimer
This product is a water treatment system designed to modify water properties for various household applications. The Echo Ultimate™ has not been evaluated by the Food and Drug Administration. This product is not intended to diagnose, treat, cure, or prevent any disease.
The filtered water meets or exceeds EPA drinking water standards. Consult your healthcare provider before making significant changes to your water consumption habits, especially if you have existing health conditions or take medications.
Important Usage Notes:
- Start with Level 1 alkaline water and gradually adjust as tolerated
- Do not consume alkaline water above pH 9.0 with meals or medications
- Keep all cleaning-application water types away from children
